Model: MZ-PQ300-A
High-Efficiency Precision | Portable Air-Cooled Design | Non-Destructive & Eco-Friendly
Customization:Available
Power:1000w
Warranty:1 Year
The 300W air-cooled pulsed laser cleaning machine utilizes MOPA pulsed fiber laser technology and features an integrated air-cooling system, eliminating the need for an external water chiller. It balances high cleaning efficiency, portability, and substrate safety, making it an ideal choice for industrial precision cleaning, surface pretreatment, and equipment refurbishment.
Application Scenarios:
· Industrial Rust Removal: Rust removal from steel plates, pipes, flanges, and structural steel components
· Surface Pretreatment: Degreasing, oxide removal, and roughening prior to welding, coating, or plating
· Mold Maintenance: Cleaning residual adhesive, carbon deposits, and oil stains from rubber and injection molds
· Cultural Relic Restoration: Rust and corrosion layer removal from metal artifacts while preserving the original texture
· Automotive Maintenance: Paint stripping from car bodies, wheel refurbishment, and engine bay degreasing
· Marine & Rail Transport: Surface cleaning and refurbishment of ship hulls, railcar bodies, and track components
Imagine that when you pat a wet towel with your hand, the water droplets will be shaken away while the towel itself remains intact. similarly, by adjusting laser pulses to specific parameters, it is like countless precise "photon palms", only shaking off attachments without causing any damage to the substrate.

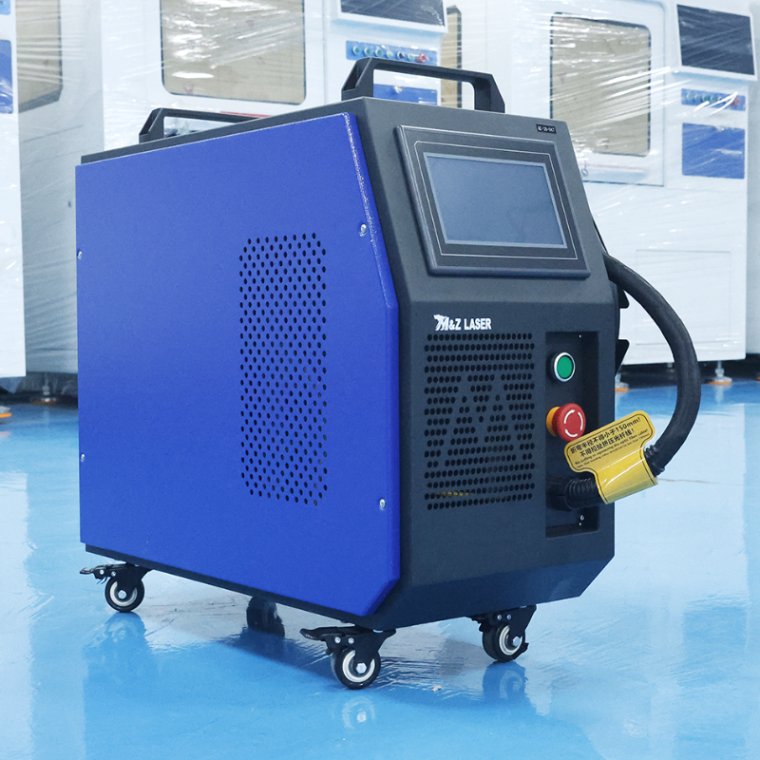

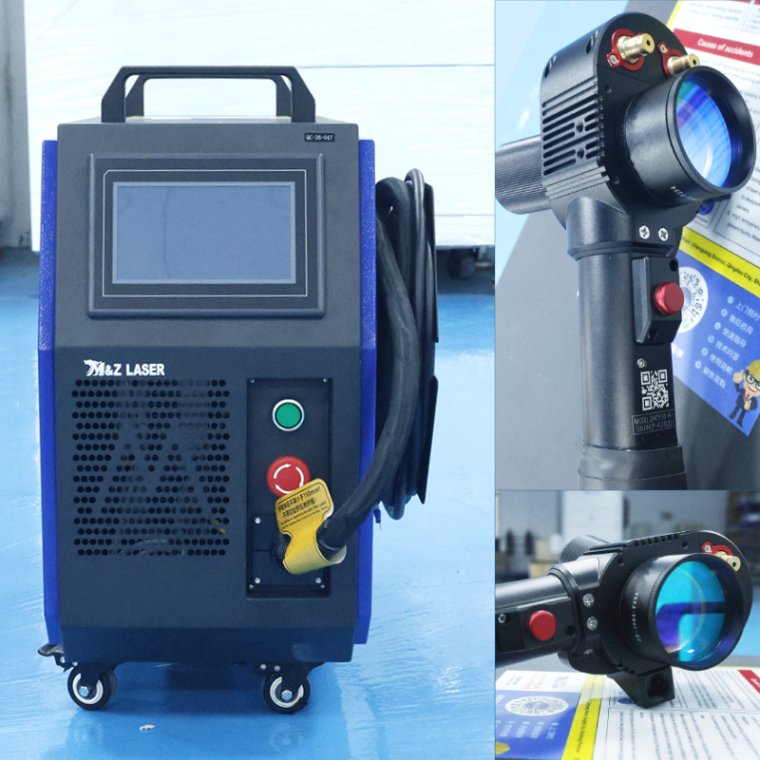

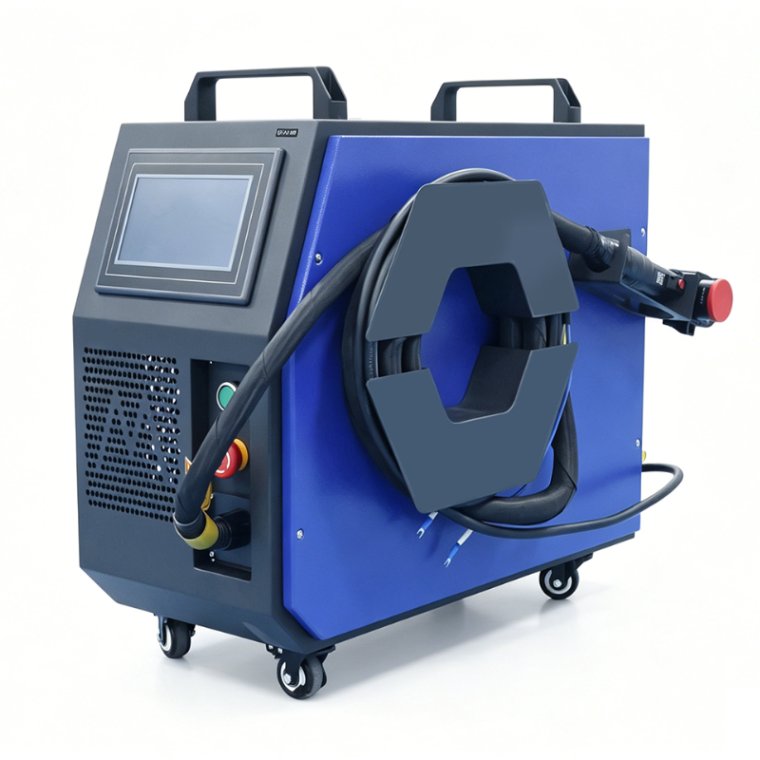

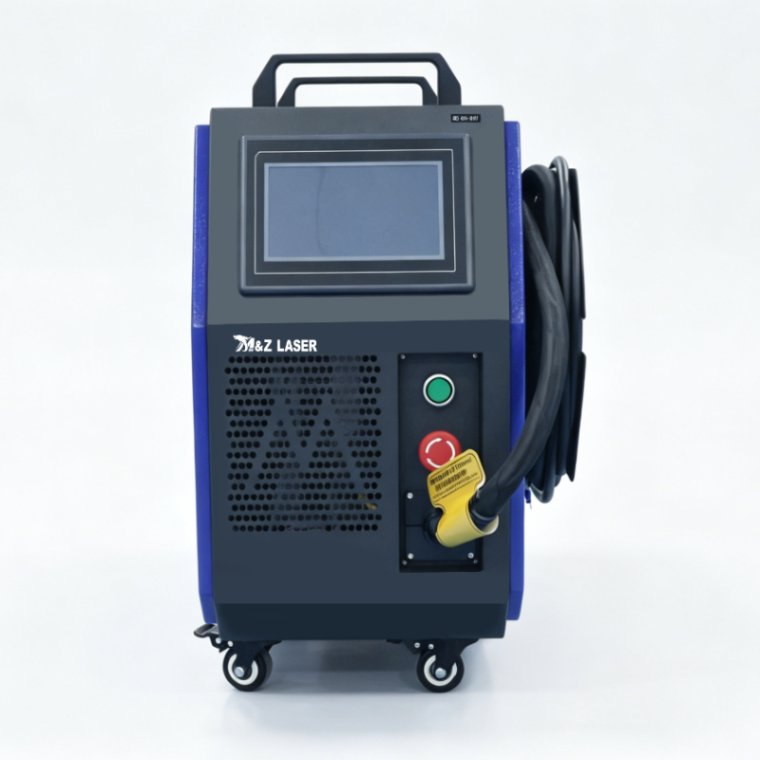

300W Air-Cooled Pulsed Laser Cleaning Machine is an advanced device that uses high-energy, short-pulse laser beams to irradiate the surface of workpieces, causing surface contaminants (such as rust, paint, oil stains, coatings, oxides, etc.) to instantly vaporize, vibrate or peel off, thereby achieving precise and efficient cleaning.
Compared with traditional cleaning methods such as sandblasting, chemical solvents and mechanical grinding, it is a "contactless, wear-free and environmentally friendly" cleaning technology, and is hailed as the "cleaning revolution of the 21st century".![]()
| Parameter | Specification |
|---|---|
| Model NO. | MZ-PQ300-A |
| Water Cooler | Hanli |
| Cleaning System | Mingzu |
| Maximum Modulation Frequency | 4kHz |
| Laser Wavelength | 1064nm |
| Tank Capacity | 13L |
| Power Requirements | 220V 50Hz/60Hz |
| Sweep Frequency | 300Hz |
| Transport Package | Export of Wooden Crates |
| Trademark | MZLASER |
| Parameter | Specification |
|---|---|
| Laser | Jpt |
| Cleaning Head | Mingzu |
| Fiber Length | 10m |
| Power Regulation Range | 10-100% |
| Cooling Mode | Water-Cooling |
| Rated Power of The Whole Machine | 2500W |
| Focal Length | 300mm |
| Incident Spot Diameter | ≤10mm |
| Specification | 1100 × 550 × 900mm |
| Origin | Qingdao, China |
![]()
300W Pulsed Laser Cleaning Machine Configuration
| Item | Specification | Item | Specification |
|---|---|---|---|
| Laser Power | 300W | Pulse Width | 13–500ns |
| Impulse Frequency | 1–3000kHz | Maximum Pulse Energy | 2mJ |
| Optical Maser Wavelength | 1064±5nm | Fiber Optic Length | 5m |
| Controlling Power Range | 0–100% | Type of Cooling | Forced Air Cooling |
Cleaning System
| Item | Specification | Item | Specification |
|---|---|---|---|
| System Pattern | Pulse Pattern | System Language | 15 languages including Chinese, English, etc. |
| Cleaning Width (Standard Field Lens F210) | 80 × 80mm | Cleaning Speed | <30000mm/s |
| Cleaning Width (Optional Field Lens F254) | 100 × 100mm | - | - |
Parameters of the 300W Pulsed Laser Cleaning Machine
| Item | Specification | Item | Specification |
|---|---|---|---|
| Input Power | Standard: 220V, 50HzOptional: 220V, 60Hz | Overall Machine Power | 1400W |
| Cleaning Gas | Compressed Air | Length of Power Cord | 3.5m |
| Temperature Requirement | -10°C ~ 40°C | Environmental Necessities | There are no strong magnetic or high-power equipment nearby that could cause interference. |
